25 Essential Parts of a Bed Frame (With Names & Uses)

A bed frame might seem like a simple structure at first glance, but it’s actually made up of several important parts—each with a specific function. Whether you’re assembling a new bed, shopping for a replacement, or simply curious about how your bed holds together, understanding the 25 parts of a bed frame can be extremely helpful.

This guide covers each part clearly, in plain English, so that everyone—from homeowners to DIY beginners—can follow along with ease.

Here is a clean table listing the 25 parts of a bed frame, showing only the number and part name, as requested:

No.Part Name
1Headboard
2Footboard
3Side Rails (Bed Rails)
4Center Support Rail
5Slats
6Support Legs (Middle Legs)
7Corner Legs
8Glides
9Caster Wheels
10Support Beams
11Bolt-On Brackets
12Hook-On Brackets
13Screws and Bolts
14Support Brackets
15L-Brackets
16Mattress Platform
17Box Spring/Foundation
18Bunkie Board
19Bed Risers
20Underbed Storage Drawers
21Trundle Frame
22Canopy Posts
23Side Panels (Trim)
24Headboard Slats
25Connector Plates
25 Essential Parts of a Bed Frame

🛏️ What Is a Bed Frame?

A bed frame is the foundation that supports your mattress and, in many cases, your box spring. It raises your bed off the floor, provides structural support, and often adds aesthetic value to your bedroom.

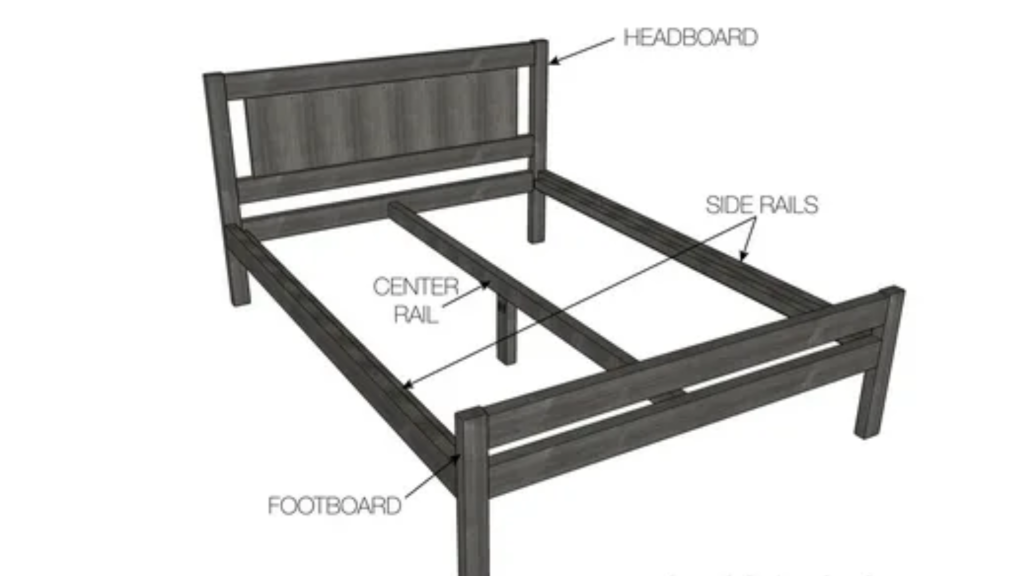

🧱 Main Structural Parts of a Bed Frame

1. Headboard

The headboard is the upright panel located at the head of the bed. It offers back support while sitting up and serves as a decorative element.

2. Footboard

Located at the foot of the bed, the footboard balances the design and can help keep bedding in place.

3. Side Rails (Bed Rails)

These long horizontal bars run along both sides of the bed, connecting the headboard to the footboard. They support the base of the bed.

4. Center Support Rail

A strong beam running from the head to the foot of the bed in the middle. It provides extra stability—especially for queen- and king-size frames.

5. Slats

These are horizontal planks that sit across the frame to support the mattress. They can be wooden or metal and are either spaced apart or fully solid.


🦾 Support and Reinforcement Components

6. Support Legs (Middle Legs)

Extra legs that attach to the center support rail to prevent sagging and distribute weight evenly.

7. Corner Legs

The four main legs—one at each corner—that support the overall weight of the bed and its occupants.

8. Glides

Flat-bottomed feet or caps on the bottom of bed legs that prevent floor scratches and help with sliding the bed.

9. Caster Wheels

Some bed frames come with small casters for easy movement. These may have locks to prevent rolling.

10. Support Beams

Heavy-duty crossbars that connect the two side rails and provide additional reinforcement under the slats.


🪛 Connection and Fastening Components

11. Bolt-On Brackets

Used to connect the headboard and footboard to the side rails using bolts.

12. Hook-On Brackets

An alternative to bolts; these allow you to slide the frame parts together using metal hooks.

13. Bed Frame Screws and Bolts

Various nuts, bolts, and screws are required to fasten all parts securely.

14. Support Brackets

Metal or wood reinforcements placed at stress points, especially where slats meet rails.

15. L-Brackets

L-shaped metal pieces often used to secure corners and joints.


🧰 Additional Frame Parts and Features

16. Mattress Platform

In platform beds, this solid surface replaces the need for a box spring and supports the mattress directly.

17. Box Spring/Foundation

Not part of the bed frame itself, but rests inside it. Provides extra lift and support for the mattress.

18. Bunkie Board

A slim board that adds support under the mattress, usually on platform or slatted frames.

19. Bed Risers

Optional add-ons placed under the legs to raise the bed’s height for added storage or comfort.

20. Underbed Storage Drawers

Slide-out compartments built into the lower part of the frame to store clothing, shoes, or linens.


🧩 Specialty Frame Parts

21. Trundle Frame

A lower, wheeled frame stored under the main bed that holds an extra mattress for guests or children.

22. Canopy Posts

Tall posts at each corner of the frame that support a canopy or fabric drape.

23. Side Panels (Decorative Trim)

Used to hide under-bed storage or complete the bed’s aesthetic design.

24. Headboard Slats (Decorative)

Vertical or horizontal wooden bars inside the headboard, often found in classic or rustic styles.

25. Connector Plates

Small metal plates that link separate frame sections, offering extra reinforcement and security.


🧠 Final Thoughts

Understanding the 25 parts of a bed frame gives you a clear picture of how this essential piece of furniture is built and functions. Whether you’re assembling a frame yourself or upgrading an old one, knowing each component helps you make smarter decisions and maintain your bed for long-term comfort.

From the sturdy side rails and support beams to the decorative canopy posts and headboards, every part matters. A strong, well-constructed bed frame not only extends the life of your mattress but also ensures restful, uninterrupted sleep.

If you’re shopping for a new bed or fixing an old one, refer to this guide to identify what you need with confidence.
